The Chase Bays Hydro Handbrake Brake Line Kit is designed for those who want to easily plumb a hydraulic hand brake into their JZX90 or JZX100 chassis. We offer this kit with 2 variations...
Stand Alone - This type is designed to use a dual rear caliper stand alone setup. It routes directly from the Handbrake Master Cylinder to the secondary calipers on the rear knuckles. We use bulkhead fittings to pass thru the chassis metal so both smoke or rain/snow doesn't have path to get into the cabin.
Inline / Pass-Thru - This type plumbed inline between the existing rear brake line(s). The handbrake master cylinder pushes the fluid that is already routed to the rear calipers when the handle is pulled to lock up the rear. It starts at the factory master cylinder OR if you have the Chase Bays Brake Line Relocation; it starts at the Bias Valve OUT side. Then routes to the Handbrake IN side. It will then run from the Handbrake OUT side to the back of the car directly to the calipers. We use bulkhead fittings to pass thru the chassis metal so both smoke or rain/snow doesn't have path to get into the cabin. This is an additional $50 USD for the extra line(s) and adapter(s).
This eliminates the entire hardline that runs under the chassis and the lines that currently connect to your calipers. If you ever change from inline to stand alone setup, you will just connect the rear brake line(s) in the engine bay and at calipers like you had before, and then use this existing kit (without the MC to Handbrake line) to connect to your new calipers. How great right?! If you plan on staying inline forever you could remove the rear brake hard lines from the car entirely to save weight and eliminate clutter.

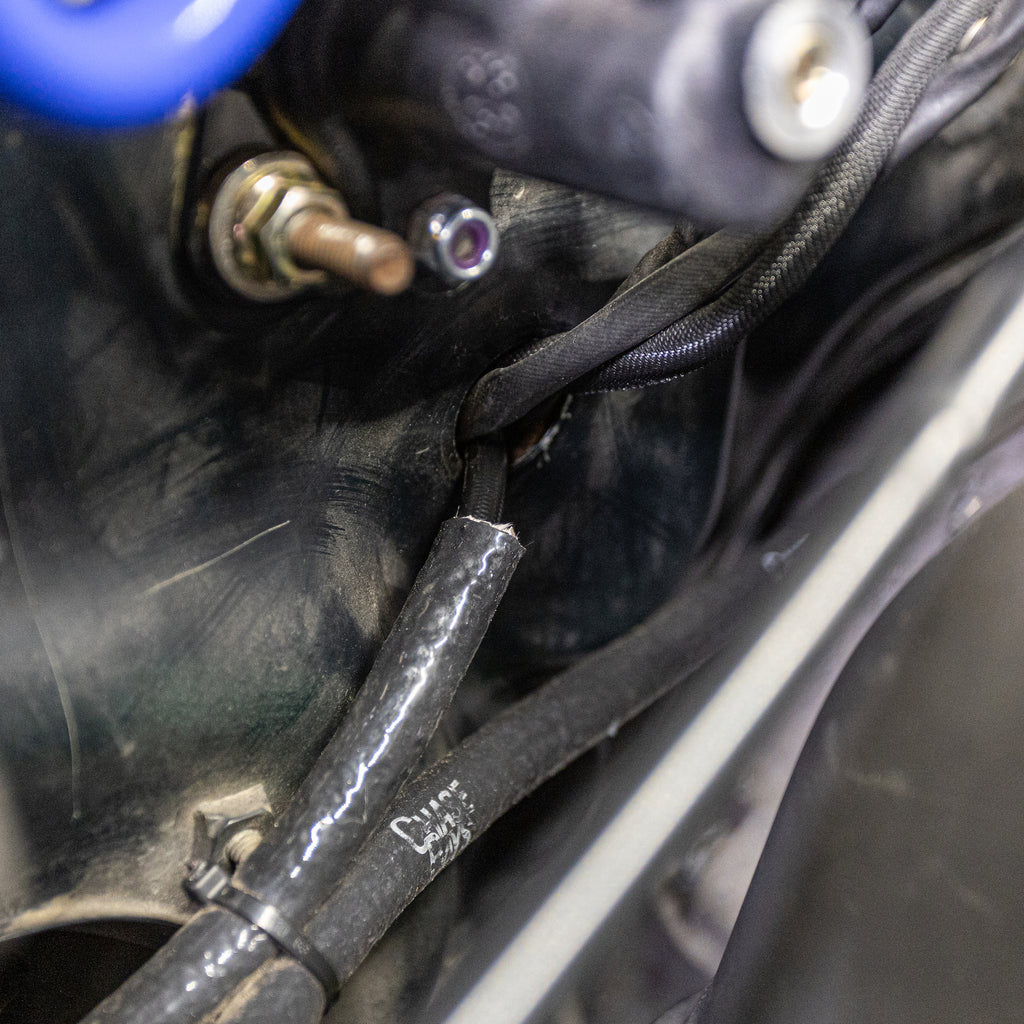

The kit uses 3AN stainless steel braided, Teflon PTFE lined, black PVC coated lines with stainless steel hose ends. We use the best components in the industry and we pressure test every line we assemble. We guarantee a leak free start up if this product is installed correctly.
BEST if used with the Chase Bays Hydro Handbrake...the most used Handbrake in all of drifting! Click here to read more...
Fits ALL JZX90 and JZX100 Chassis.
